How it works

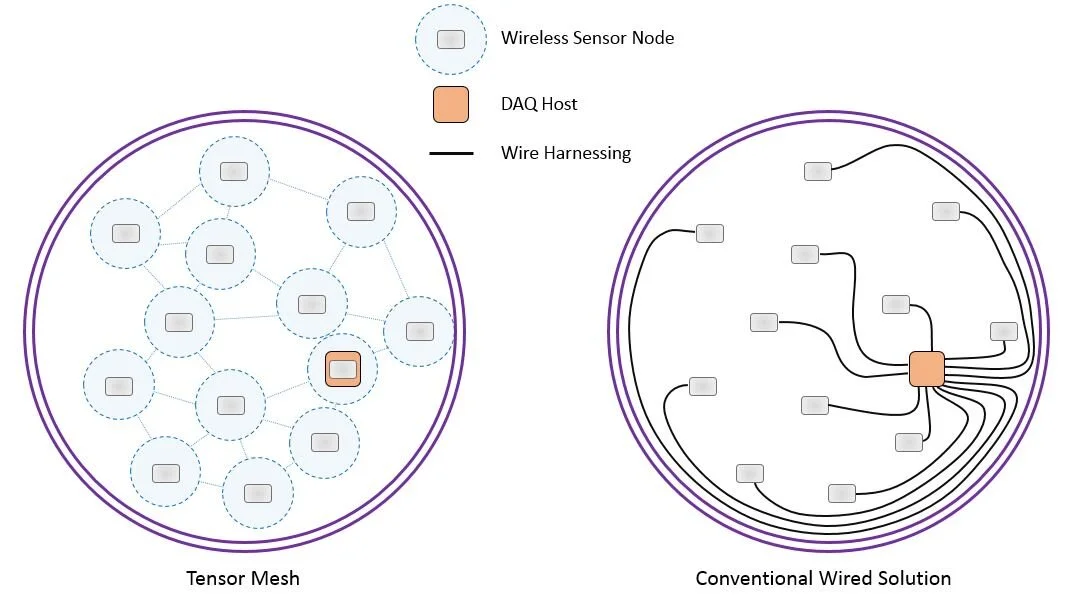

Tensor’s IoT data acquisition mesh network works on a fundamental principle; acquire sensor data wirelessly and seamlessly. We want to shake up the data acquisition space. Our wireless sensor nodes feature data capture capabilities with direct mesh network data transfer tailored for all of your sensor needs.


Capabilities

Thermocouple, Resistance Thermometer, Strain, Accelerometer, Pressure, Air Toxicity, Position, Video, Microphone and more.

Design

Nodes feature a data capture board, roughly 2.5cm x 2.5cm with battery cell included. In addition, every Tensor node comes complete with Tensor’s innovative mesh network solution geared to support drop-in sensor additions to any existing mesh network. Tensor’s low power design also makes it possible for nodes to run independent of user interaction for months at a time.

  • TX/RX in the 2.4GHz band

  • 32-bit 38.4MHz ARM Cortex-M4 with DSP instruction and floating-point unit

  • TX at 250kbps DSSS-OQPSK

  • IEEE 802.15.4 wireless protocol

  • Over-The-Air Updates

  • Highly software configurable

  • Integrated battery cell and power savings smart algorithms provide extended battery life for node devices

Applications

Aerospace Data Acquisition

  • Used for sensor networks of TC, RTD, Strain, PT, Solenoid, Accelerometer, Video, Microphone

  • Customized or tailored to the users specific needs

Satellite Ground Station Terminals/Receivers

  • Receiving Internet from global LEO constellations

Forest Fire Detection

  • Placed in common forest areas, upon detecting smoke or potential for forest fire, node sends alert to nearest first responders

Avalanche Detector Beacon

  • Detects avalanche and rock fall in mountainous and alpine terrain

Radiation Geiger Counter

  • Detects, measures and displays harmful levels of radiation

Tunneling

  • Location tracking of Tunnel Boring Machine (TBM) + sensor data acquisition

Battery Management System (BMS) Cell Monitoring

  • Monitors and reports individual cell voltage levels in modular battery

Farming

  • Sensor data acquisition on farm property

  • Nodes on farm animals such as cows for position tracking + health monitoring (blood testing) and statistics

Carbon Detector

  • Detects carbon monoxide or dioxide levels and sends alerts if exceeds levels

  • Used in residential or commercial settings

GPS Receiver and Locator

  • Miniaturized GPS receiver

Shipping Container Information

  • Data Acquisition + Safety Monitoring, Video, Microphone
